120w Smd 3030 Waterproof Outdoor LED Floodlights 9600lm

Product Categories
Shanxi Guangyu Led Lighting Co.,Ltd.
Contact Now

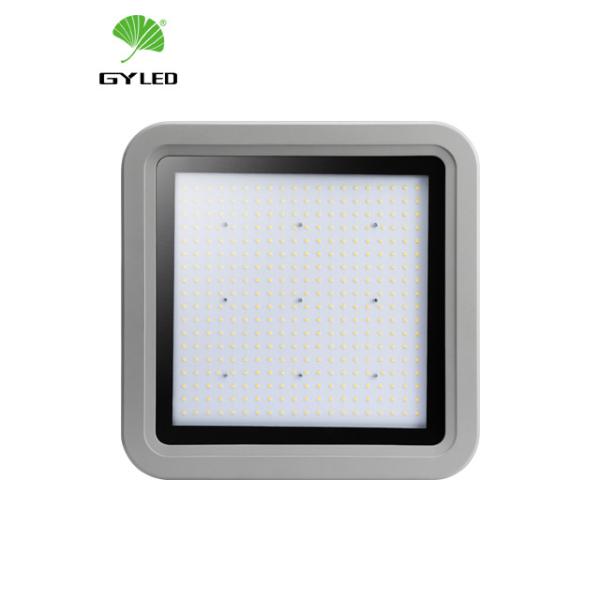

120w Smd 3030 Waterproof Outdoor LED Floodlights 9600lm

Brand Name : GYLED

Model Number : GY300/380TFG

Certification : CE, ROHS, EMC, LVD

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200000PCS/YEAR

Delivery Time : 7-10DAYS

Packaging Details : 2PCS, 4PCS IN 1CARTON

Item type : Dimmable LED Floodlights

Style : Modern,European,Decoration

Color temperature(cct) : 3000/4000/5000/5700K/6500K

Beam Angle : 30°/60°/80°/110°

Working temperature(℃) : -40 ~ 50℃

Lamp luminous efficiency(lm/w) : ≥130lm/W

Power(W) : 80W/120W/140W/200W

Frequency : 50/60Hz

Input voltage(v) : AC90~305V

IP rating : IP65

Contact Now

Model No.  GY300TG  GY300FG
Lamp power 80 120 80 120
Color Temperature(K) 3000K-6500K
lumen Output(lm) 9600-10400 14400-15600 9600-10400 14400-15600
Luminous Efficiency(lm/w) 120-130
CRI(Ra) 70
Output Voltage(V) 100-240
Frequency(Hz) 50/60
Power Factor ＞0.95
Power efficiency 90%-92%
Class I
Surge Protection 10KV
L80@55° 96.68% 97.14%
Beam Angle(°) 30/60 110
Operation Temperature(℃) -40℃-40℃
Humidity 0-90%
Lamp Size(mm) 300*300*261
Packing Size(mm) 700*350*340
Weight(kg) 5.3
Material Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass
IP IP65
IK IK08
Warranty Period(years) 5years



GY380TFG Data Sheet



Model No. GY380TG GY380FG
Lamp Power(w) 140 200 140 200
Color Temperature(K) 3000K-6500K
Lumen Output(lm) 16800-18200 24000-26000 16800-18200 24000-26000
Luminous Efficiency(lm/w) 120-130
CRI(Ra) 70
Output Voltage(V) 100-240
Frequency(Hz) 50/60
Power Factor ＞0.95
Power Efficiency 88%-89% 88%-90% 88%-89% 89%-91%
Class I
Surge Protection 10KV
L80@55° 96.68% 97.14%
Beam Angle(°) 30/60 110
Operation Temperature(℃) -40℃-40℃
Humidity 0-90%
Lamp Size(mm) 380*380*261
Packing Size(mm) 430*430*400
Weight(kg) 7.5
Material Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass
IP IP65
IK IK08
Warranty Period(years) 5years



Led Reflector 200w 140w 120w 80w Smd 3030 Led Flood Light Waterproof



Following many years of development and interacting closely with customers,

GYLED has been researching and designing LEDs to meet and seek market demands. LEDs is rapidly becoming the much-needed replacement for traditional old lamps.

GYLED’s cost-effective manufacturing process allows competitive prices for competitive customers.

GYLED is known for its ability to innovate in the LED industry, its advanced production line and business cooperation experience, and its professional, scientific and operational management teams.

Together with these advantages allow for efficient, energy-saving and stable LED lights for our customers and allowing investors to feel confident in consistently strong returns.



LED Efficacy: >120lm/W

CCT: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K

CRI: Ra≥70

LED Life: >50000hrs

Beam Angle: 30°/60°/90°/120°

PF: >0.97

IP Rating: IP66

IK Rating:IK08

Power Supply Efficiency: >92%

THD: ≤10%

Surge Protection: 6KV / 10KV optional

Material: Aluminum and PC Optical Lens

Color / Finish: Light Grey / Power Coating With bracket

Warranty: 5 years



LED floodlights are widely used in:

Outdoor lighting

Architectural lighting

Storage spaces

Golf courses

Landscape lighting

High mast lighting

Gym lighting

Storage warehouse lighting

Façade lighting

Tunnel lighting

Square, Park, Wall of buildings, Church, Hotel, Bridge, Tree, Public areas, etc.
