Anti Glare Ra80 120w 200w Outdoor Flood Lighting For Gas Station

Product Categories
Shanxi Guangyu Led Lighting Co.,Ltd.
Contact Now

Anti Glare Ra80 120w 200w Outdoor Flood Lighting For Gas Station

  • 1
  • 2
  • 3

Brand Name : GYLED

Model Number : GY300/380TFG

Certification : CE, ROHS, EMC, LVD

Place of Origin : CHINA

MOQ : 1PCS

Price : Negotiation

Payment Terms : T/T, L/C, Western Union

Supply Ability : 200000PCS/YEAR

Delivery Time : 7-10DAYS

Packaging Details : 2PCS, 4PCS IN 1CARTON

Power(W) : 80W/120W/140W/200W

Input voltage(v) : AC90~305V

Lamp luminous efficiency(lm/w) : ≥130lm/W

CRI (Ra>) : Ra70/80(optional)

Beam Angle : 30°/60°/80°/110°

Warranty(year) : 5 years

Material : Die-casting Aluminum+PC lens/Tempered glass

Application : Gas sataion, Parking Lot, Garden,Landscape,Square,Outdoor Lighting

Contact Now

CE certificate 120w 200w outdoor flood lights led service station area lighting

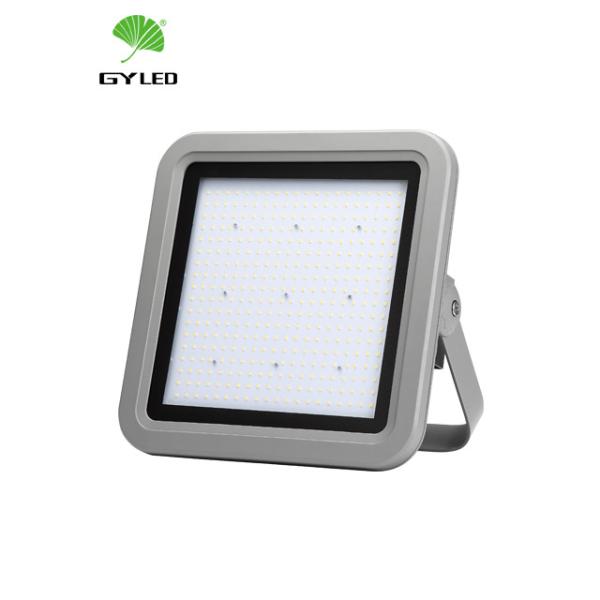

GY300/380TFG LED Outdoor Floodlights

Optical Design, Anti-glare treatment.
High efficiency and energy saving

5 years warranty



GY380TFG Data Sheet

Model No. GY380TG140(144)/AC GY380TG200(196)/AC GY380FG140(360)/AC GY380FG200(480)/AC
Lamp Power(w) 140 200 140 200
Color Temperature(K) 3000K-6500K
Lumen Output(lm) 16800-18200 24000-26000 16800-18200 24000-26000
Luminous Efficiency(lm/w) 120-130
CRI(Ra) 70
Output Voltage(V) 100-240
Frequency(Hz) 50/60
Power Factor ＞0.95
Power Efficiency 88%-89% 88%-90% 88%-89% 89%-91%
Class I
Surge Protection 10KV
L80@55° 96.68% 97.14%
Beam Angle(°) 30/60 110
Operation Temperature(℃) -40℃-40℃
Humidity 0-90%
Lamp Size(mm) 380*380*261
Packing Size(mm) 430*430*400
Weight(kg) 7.5
Material Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass
IP IP65
IK IK08
Warranty Period(years) 5years

GY300TFG Data Sheet

Model No. GY300TG80(80)/AC GY300TG120(288)/AC GY300FG80(80)/AC GY300FG120(288)/AC
Lamp power 80 120 80 120
Color Temperature(K) 3000K-6500K
lumen Output(lm) 9600-10400 14400-15600 9600-10400 14400-15600
Luminous Efficiency(lm/w) 120-130
CRI(Ra) 70
Output Voltage(V) 100-240
Frequency(Hz) 50/60
Power Factor ＞0.95
Power efficiency 90%-92%
Class I
Surge Protection 10KV
L80@55° 96.68% 97.14%
Beam Angle(°) 30/60 110
Operation Temperature(℃) -40℃-40℃
Humidity 0-90%
Lamp Size(mm) 300*300*261
Packing Size(mm) 700*350*340
Weight(kg) 5.3
Material Die Casting Aluminium Heat Sink+Sheet Metal Bracket+PC Die Casting Aluminium Heat Sink+Sheet Metal Bracket+Tempered Glass
IP IP65
IK IK08
Warranty Period(years) 5years

Materials:

□ Housing: High-pressure die-cast aluminum, first given a zinc chromate substrate, then finished in RAL7035 light grey polyester powder coating for optimum protection against harsh environments
□ Front Glass(if any): Toughened glass, secured within an aluminum frame.
□ Bracket: Galvanized steel, with additional locking screws.
□ LENs(for some beam angles): Plastic.
□ LEDs: Samsung/Osram LED chips with LM80 in TM21 test report.
□ Driver: MOSO brand LED Driver with CE and TUV approval certificates.

Anti Glare Ra80 120w 200w Outdoor Flood Lighting For Gas StationAnti Glare Ra80 120w 200w Outdoor Flood Lighting For Gas Station

Anti Glare Ra80 120w 200w Outdoor Flood Lighting For Gas Station
